A. Introduction

i. Overview of the importance of calculating cable size correctly.

Calculating the correct cable size is a fundamental aspect of electrical engineering that ensures the safety and efficiency of electrical installations.

The correct cable size accommodates the electrical load and minimizes risks such as overheating, fire hazards, and equipment damage. This calculation is not just about compliance with electrical codes; it’s about ensuring that electrical systems operate within their optimal parameters.

By precisely calculating the cable size, engineers and technicians can avoid unnecessary costs and maximize the lifespan of the electrical system.

ii. Brief explanation of the factors influencing cable size.

Several key factors play a pivotal role in determining the appropriate cable size for any given application.

These include the load current, which is the amount of current the cable needs to carry; the length of the cable, which affects the voltage drop and potential power loss; the type of current (AC or DC), which influences the resistance and reactance encountered by the current; and ambient temperature, which can significantly impact the cable’s performance.

Each of these factors must be carefully considered to ensure that the cable can handle the electrical load safely and efficiently.

iii. Outline of the article structure.

This article is designed to serve as a comprehensive guide to cable size calculation. It begins by delving into the significance of cable size and continues with an in-depth look at the various factors affecting cable size calculation.

Following this, we will explore the formulas and step-by-step calculations involved in determining the correct cable size, including examples to illustrate these concepts in practice.

The article also addresses advanced considerations and adjustments that may be necessary in specific scenarios and concludes with a discussion of tools, resources, and best practices for electrical professionals.

Our goal is to equip you with the knowledge and tools needed to make informed decisions about cable sizing in your projects.

B. Understanding Cable Size and Its Significance

i. Definition of cable size and its units of measurement.

Cable size refers to the physical dimensions of electrical cables, specifically the cross-sectional area of the cable’s conductor, typically measured in square millimeters (sq mm) or American Wire Gauge (AWG) in the United States.

The size of a cable is directly related to its capacity to carry current: larger cables can carry more current than smaller ones.

Understanding and selecting the correct cable size is crucial for any electrical installation to ensure it can handle the intended load without overheating or suffering damage.

ii. The role of cable size in electrical safety and system efficiency.

The importance of selecting the correct cable size cannot be overstated when it comes to electrical safety and the efficiency of an electrical system.

An undersized cable can lead to overheating, which poses a significant fire risk and can damage both the cable and the connected equipment. On the other hand, a cable that is too large may lead to unnecessary expenditure and may not be as efficient in terms of energy usage.

Therefore, calculating the correct cable size ensures that electrical installations are safe, compliant with regulatory standards, and operate at optimal efficiency, thereby saving energy and reducing costs in the long term.

iii. Common applications and why accurate calculation is critical.

Cable size calculation finds its application across a wide range of fields, from residential and commercial building wiring to industrial power distribution and specialized electrical systems.

In residential settings, accurate cable size calculation ensures that household appliances receive the correct power supply without risking overheating. In commercial and industrial environments, where the electrical load can be significantly higher, precise cable sizing becomes even more critical to prevent equipment failure, ensure safety, and maintain operational efficiency.

The diverse applications highlight the universal importance of accurate cable size calculation in ensuring the reliability and safety of electrical systems in various contexts.

C. Factors Affecting Cable Size Calculation

i. Load current – The importance of accurately calculating the current.

The load current, or the amount of current that a cable needs to safely conduct, is the cornerstone of cable size calculation. An accurate assessment of the load current is essential because it directly influences the cable’s ability to carry electrical power without overheating.

Overloading a cable beyond its capacity can lead to insulation breakdown and potential fire hazards. Therefore, understanding the total electrical load and the nature of the load (whether it’s lighting, heating, or machinery) is crucial for determining the appropriate cable size that can handle the current safely and efficiently.

ii. Length of the cable – How distance affects voltage drop and cable size.

The length of the cable run plays a significant role in cable size calculation due to the voltage drop over distance. Longer cable runs experience more significant voltage drops, which can lead to inefficient system performance and, in severe cases, underpowered or damaged equipment.

Calculating the correct cable size for a particular length is essential to ensure that the voltage at the point of use is within acceptable limits for the equipment being powered. This involves considering the maximum allowable voltage drop for the system and may require upsizing the cable to compensate for the loss over distance.

iii. Type of current (AC or DC) – The differences in calculation due to current type.

The type of current—alternating current (AC) or direct current (DC)—affects cable size calculation differently. AC systems, prevalent in most household and industrial applications, are subject to additional considerations such as power factor, reactance, and harmonics, which can influence cable size.

DC systems, while not dealing with these AC-specific factors, still require careful consideration of resistance and potential voltage drops over long distances.

The choice between AC and DC impacts the calculation methodology, making it essential to apply the correct formula and considerations for the specific type of current in use.

iv. Ambient temperature – The impact of environment on cable performance.

Ambient temperature significantly affects cable performance and sizing. Cables installed in hot environments, such as industrial settings or outdoor locations exposed to direct sunlight, may need to be derated, meaning their nominal capacity is reduced to prevent overheating.

Conversely, cables in cooler environments may perform under their rated capacity. Temperature factors into cable size calculation through temperature correction factors, ensuring that the selected cable can handle the expected load without risk, regardless of environmental conditions. Accounting for ambient temperature variations ensures the electrical system’s safety and longevity.

D. The Formula for Calculating Cable Size

Let’s dive into the step-by-step process of sizing a cable for an electrical installation, making sure the explanation is clear, user-focused, and utilizes the same numbers provided in your file.

We’re dealing with a scenario involving a load of 80KW that’s 200 meters away from the source. Our setup includes three-phase power at 415V, a power factor (pf) of 0.8, and a target to keep the voltage drop within 5%.

The cable will be directly buried in the ground at a depth of 1 meter, with the ground temperature at 35°C, and we’ll be placing one cable per trench. Ready to get started? Let’s break this down step-by-step:

Step 1: Calculating the Load Current

First up, we need to figure out the load current, which tells us how much current the system needs to carry safely. This step is crucial because it helps ensure the cable can handle the electrical load without overheating. We use the formula:

I=Power in watts1.732×V×pf

Plugging in our numbers:

I=80,0001.732×415×0.8=139 A

So, our system requires a cable that can carry 139 amps of current.

Step 2: Determining Correction Factors

Next, we adjust for environmental factors using correction factors. These adjustments are necessary to ensure the cable operates efficiently under real-world conditions. Here’s what we consider:

• Ground Temperature: High temperatures can affect cable performance. Our correction factor here is 0.89.
• Soil Type: Different soils have varying thermal properties. We have a correction factor of 1.05.
• Cable Burial Depth: The depth at which a cable is buried can also influence its thermal environment. Our factor is 1.0.

Combining these gives us a total derating factor:

Total Derating Factor=0.89×1.05×1.0=0.93

This factor adjusts our cable’s capacity to account for environmental conditions.

Step 3: Selecting the Cable

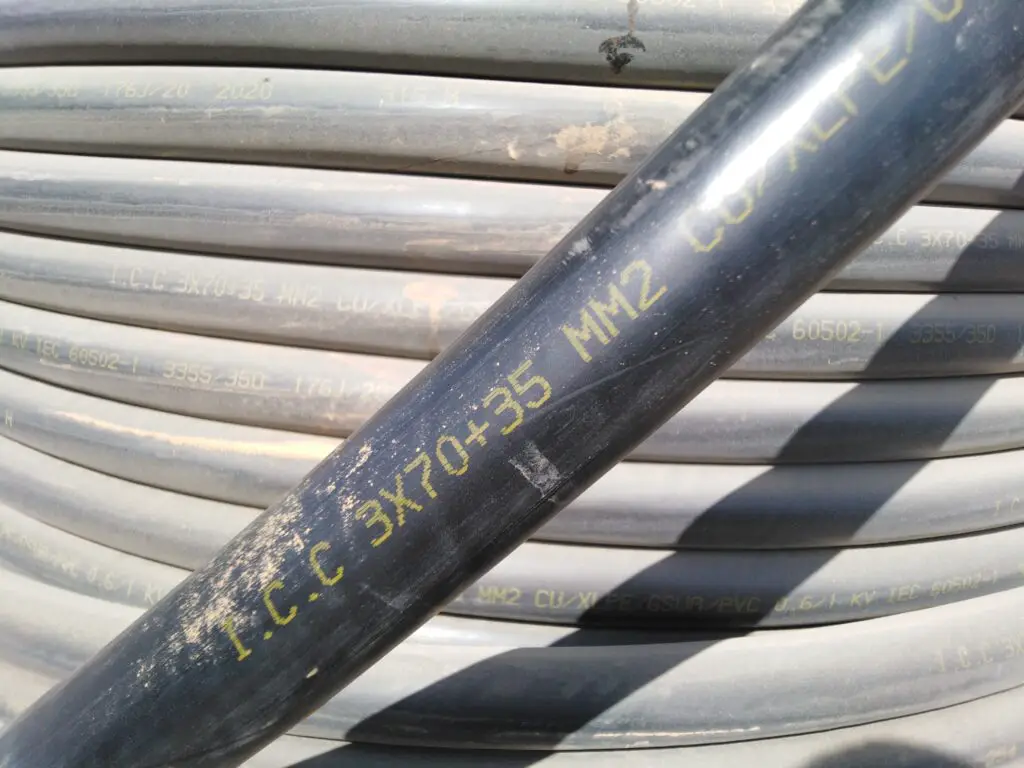

With our adjustments in mind, we choose a cable. For our conditions, we select a Copper XLPE cable with dimensions 3*50+25 mm², which typically handles up to 185A. After applying our derating factor (185A * 0.93), the cable can safely carry 172A, which is more than our required 139A.

Step 4: Calculating the Voltage Drop

An essential aspect of cable sizing is ensuring the voltage drop over the cable’s length is within acceptable limits to maintain power quality. Using the formula:

VD=0.715×Distance×Load Current

Substituting our values:

VD=0.715×200×1391000=19.877 V

The maximum allowable voltage drop is 5% of 415V, which equals 20.75V. Our calculated drop of 19.877V is within this limit, so we’re good to go.

E. Advanced Considerations and Adjustments

i. Derating factors and how to apply them.

Derating factors are adjustments made to the nominal capacity of cables to ensure safe operation under various conditions.

These factors account for conditions that may affect cable performance, such as ambient temperature, cable grouping, and installation methods. Applying derating factors is crucial for preventing cable overheating and ensuring long-term reliability.

For example, cables installed in a conduit in a hot environment may carry less current than the same cables in a cooler, ventilated space. Understanding how to calculate and apply these factors is essential for accurate cable sizing, particularly in complex installations or extreme conditions.

ii. Impact of installation conditions on cable size.

Installation conditions, such as the method of installation (in air, buried, in conduit), proximity to other heat sources, and even the orientation of the cable run, can significantly impact the effective cable size.

For instance, cables run in parallel for long distances may require upsizing due to mutual heating effects. Similarly, cables buried without adequate heat dissipation measures might also need to be derated.

Recognizing these factors and adjusting cable size accordingly ensures the electrical system operates within safe parameters, avoiding potential hazards and inefficiencies.

iii. Choosing the right insulation material.

The choice of insulation material for a cable not only affects its current-carrying capacity but also its resistance to environmental factors like temperature, moisture, and chemical exposure.

Materials such as PVC, XLPE (cross-linked polyethylene), and EPR (ethylene propylene rubber) are commonly used, each with specific properties that make them suitable for different applications.

Selecting the appropriate insulation material, considering the operational environment and the electrical characteristics of the cable, is a nuanced decision that can significantly affect the cable’s performance and durability.

This selection process involves understanding the material properties, including thermal resistance and mechanical strength, to ensure the cable meets the required safety and performance standards.

F. Tools and Resources for Cable Size Calculation

i. Software and online calculators.

In the digital age, numerous software tools and online calculators have been developed to simplify the process of cable size calculation. These resources range from simple web-based calculators for basic installations to sophisticated software capable of handling complex electrical systems with multiple variables.

They often incorporate various standards and codes, allowing users to input specific parameters and receive recommendations for cable sizes. Utilizing these tools can significantly enhance accuracy, efficiency, and compliance with regulations, making them invaluable for electrical professionals.

iii. Regulatory and code compliance resources.

Compliance with local, national, and international electrical codes and standards is non-negotiable in the field of electrical engineering.

These regulations ensure that electrical installations meet safety and performance requirements, protecting both property and lives. Resources such as the National Electrical Code (NEC) in the United States, the IEC standards internationally, and various local codes, provide comprehensive guidelines for cable size calculation among many other aspects of electrical installations.

Staying informed about these regulations and how to access and interpret the relevant sections is crucial for maintaining compliance and ensuring the safety of electrical systems.

An explanation of how these resources guide cable size calculation, including any recent updates or changes, will keep readers at the forefront of best practices in electrical design and installation.

G. Conclusion

i. Summary of key points.

The accurate calculation of cable size is a critical step in the design and installation of electrical systems, ensuring safety, efficiency, and regulatory compliance. This article has navigated through the essential considerations, from understanding the basic parameters that influence cable size to applying advanced considerations and adjustments for specific conditions.

We’ve explored the fundamental formula for cable size calculation, delved into the factors affecting cable sizing such as load current, cable length, and ambient temperature, and highlighted the importance of considering installation conditions and choosing the right insulation material.

ii. The importance of continuous learning and staying updated with regulations.

Electrical engineering is an ever-evolving field, with continuous advancements in technology and changes in codes and standards. It’s vital for professionals in this field to commit to lifelong learning and staying informed about the latest developments and regulatory updates.

This not only ensures the safety and reliability of electrical installations but also enhances the practitioner’s expertise and value in the industry. Engaging with ongoing education, attending seminars and workshops, and participating in professional communities are excellent ways to stay current and contribute to the advancement of electrical engineering practices.

iii. Call to action: Encouraging safe and efficient electrical design practices.

This guide serves as a resource for electrical professionals at all levels to refine their understanding of cable size calculation and apply this knowledge to their projects. By adhering to established standards and leveraging available tools and resources, we can ensure that our electrical systems are safe, efficient, and sustainable.

Let this article inspire you to embrace best practices in your work, engage with the broader professional community, and contribute to the ongoing improvement of electrical engineering and design. Together, we can achieve higher standards of safety and efficiency that benefit everyone.
