0:00

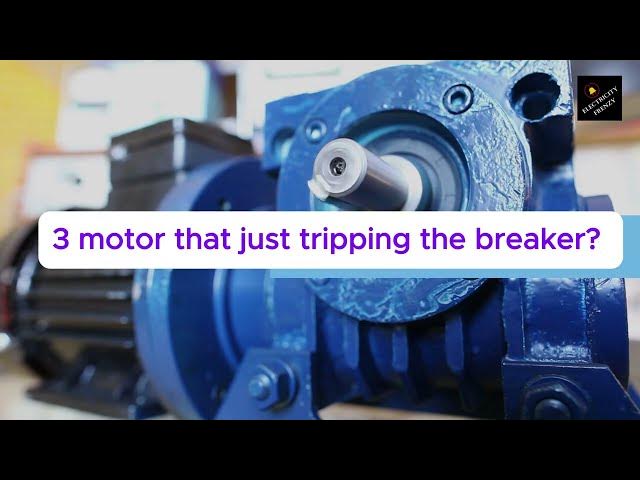

hey there ever had a three-phase motor
0:02
that just won't stop tripping the
0:03
breaker super frustrating right but
0:06
don't worry I've got you covered today
0:09
we're going to break down the most
0:10
common reasons why this happens and how
0:13
to figure out what's causing it let's
0:15
jump in overload condition all right
0:18
first up overload this basically means
0:20
the motor is working too hard maybe it's
0:23
got too much load on it where the
0:24
voltage is lower than it should be so
0:26
it's pulling extra current either way
0:29
the circuit breaker is doing its job
0:31
shutting things down before the motor
0:33
overheats short circuit next we've got
0:35
short circuits these are a big deal if
0:38
two wires touch or the insulation breaks
0:40
down boom instant surge of current the
0:43
breaker trips right away to prevent
0:45
serious damage or even fire phase loss
0:48
single phasing a three-phase motor needs
0:51
all three phases to run smoothly if one
0:54
is missing maybe because of a blown fuse
0:56
a loose connection or a bad contactor
0:59
the motor tries to make up for it by
1:01
pulling extra current and that that
1:03
leads straight to overheating and a
1:05
tripped breaker ground fault this
1:08
happens when electricity leaks to the
1:09
ground often because of damaged
1:11
insulation or moisture the breaker
1:14
senses this and trips to prevent shocks
1:16
or equipment damage if your motor is old
1:19
or exposed to a damp environment this
1:21
could be your culprit locked rotor
1:24
jammed motor imagine trying to start a
1:26
car with the parking brake on if the
1:28
motor shaft is stuck maybe due to seized
1:30
bearings or a jammed load it'll pull a
1:33
huge amount of current and you guessed
1:35
it the breaker shuts it down for safety
1:38
circuit breaker issues and hey sometimes
1:41
the problem isn't even the motor a weak
1:43
old or undersized breaker might be
1:45
tripping when it really shouldn't so
1:48
always keep that in mind too how to
1:50
figure out what's causing a three-phase
1:52
motor to trip the circuit breaker
1:54
checking for overload first thing grab a
1:57
clamp meter and check how much current
2:00
compare it with the rating on the name
2:02
plate if it's running too high you might
2:04
need to reduce the load or check for low
2:07
voltage looking for a short circuit turn
2:09
off the power and take a look at the
2:11
wiring if you see burn marks melted
2:14
insulation or smell something burnt
2:16
that's a red flag a quick test with a
2:19
multimeter can confirm if there's a
2:20
short between phases detecting phase
2:23
loss use a Multimeter to check voltage
2:26
on all three phases if one is missing
2:29
check uses connections and the contactor
2:32
fixing this early can save the motor
2:34
from serious damage testing for ground
2:36
faults a mear insulation tester is your
2:40
best friend here if it shows low
2:42
resistance between the windings and the
2:43
motor body there's leakage that means
2:46
you've got an insulation problem that
2:48
needs fixing checking for a locked rotor
2:51
try turning the motor shaft by hand if
2:54
it doesn't move you might have seized
2:55
bearings or a jammed load solve the
2:58
mechanical issue first before resetting
3:00
the breaker inspecting the circuit
3:02
breaker if the motor seems fine but it's
3:04
still tripping the breaker itself might
3:07
be the problem swap it with a properly
3:09
rated one and see if that fixes the
3:11
issue and there you have it if your
3:13
three-phase motor is tripping now you
3:16
know exactly what to check if this video
3:18
helped hit that like button subscribe
3:21
and ring the bell for more
